Dynamic's range of multiline displays, 'Dynamic Noticeboards', are the most efficient way to get large amounts of information across to your customers or employees. As with all Dynamic Displays, you have a wide range of sizes, colours to choose from.
500mm square projecting display. Can cope with 8 lines of 10 characters at 50mm. Also does other text sizes, graphics & serves as a time and temperature display. (supplied via Jayex)
Standard model DN75-1604. 75mm characters. 4 lines of 16 characters. (supplied via LED Systems)
A bit of everything on this one. 4 line 21 character @ 75mm. 2750mm x 250mm DynaVision (mainly used for scrolling text). 75mm time temperature. Some vinyl printing and a backlit logo panel. System is 3m x 2m and stands on posts 1m above the ground. Check the visibility considering the photo was taken in direct sunlight. (supplied via Esprit)
Model DN75-2106. 75mm characters. 6 lines of 21 characters. Vinyl printed facia (supplied via LED Systems)
A pair of 3m x 250mm DynaVisions installed at a Theatre/Cinema. Displays have either 1 line of 16 x 250mm characters or 2 lines of 32 x 100mm characters. (supplied via Jayex)
Model DN75-2604. 75mm characters. 4 lines of 26 characters. (supplied via Esprit)
Model DV1-120/030. 200mm characters. 3 lines of 16 characters. Built with a hinged bracket (not visible) to fit to the top of a Van (supplied via LED Systems)
Model DN75-2604. 75mm characters. 4 lines of 26 characters. Oversized case ready for vinyl printing by the customer. Fitted on a custom made projecting angle bracket to face the road (supplied via Esprit)

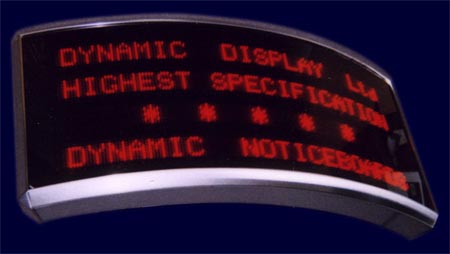

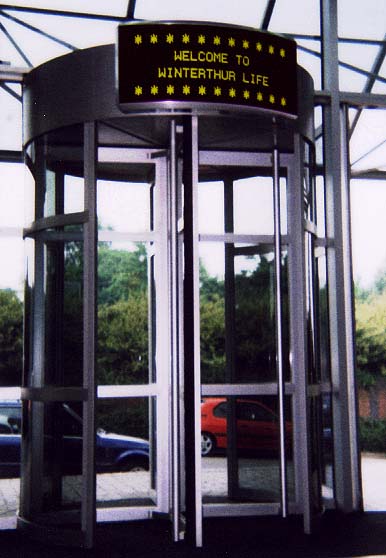

Dynamic Display can produce signs with a curved profile down to a radius of 600mm (24")
The above display was manufactured for a precise fit to the profile of the customers revolving doors.

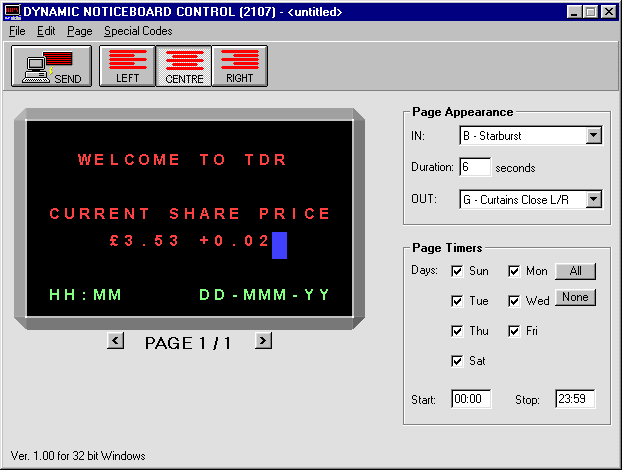

The easiest to use software for instant programming of your network of displays.
| General Specifications |
| Display Features: |
Scroll in all 4 directions, Wipe in all 4 directions, Curtains open or close, Starburst, Flashing Characters, Time & Date. |
| Special Features: |
Timers for each page, choose the times, days of the week and dates any page is displayed. |
| Keyboard Control Option: |
Simple Infra-red remote control gives access to all functions. |
| Computer Control Option: |
Powerful, easy to use Windows software.
Choice of RS232, RS485, Modem or GSM (cellular) link.
Up to 256 displays in each network segment. |
| Message Memory Size: |
Typically 200 full pages. |
| Message Retention: |
3 years without power. |
| Case construction: |
Polished aluminium extrusion frame.
Folded anodised aluminium body.
Tinted acrylic fascia.
Suitable for wall / ceiling mounting.
Optionally case can be painted any colour. |
| Power: |
230 / 110 V AC operation
Internal power supply
IEC inlet
Supplied with 2m lead and fitted plug. |
| Operating conditions: |
0°C to 50°C ambient temperature
32°F to 120°F ambient temperature
0 to 90% humidity (non-condensing) |
| 30mm (1.2") High Characters - 1 x 3mm LED per pixel |
| Model |
Case |
Chars. to View |
Lines |
Power |
Weight |
|
| DN30-1604 |
505mm wide
450mm high
70mm deep |
16 |
4 |
134W max
67W nom |
7.8Kg |
 |
| DN30-3204 |
985mm wide
450mm high
70mm deep |
32 |
4 |
268W max
134W nom |
12.6Kg |
 |
| DN30-4804 |
1465mm wide
450mm high
70mm deep |
48 |
4 |
403W max
201W nom |
17.4Kg |
 |
| DN30-1608 |
505mm wide
850mm high
70mm deep |
16 |
8 |
268W max
134W nom |
7.8Kg |
 |
| DN30-3208 |
985mm wide
850mm high
70mm deep |
32 |
8 |
537W max
268W nom |
12.6Kg |
 |
| DN30-4808 |
1465mm wide
850mm high
70mm deep |
48 |
8 |
806W max
403W nom |
17.4Kg |
 |
An almost unlimited combination of other configurations are possible, contact us for more information. If you require imperial measurements please contact us.
| 50mm (2") High Characters - 1 x 5mm LED per pixel - Popular Sizes |
| Model |
Case |
Chars. to View |
Lines |
Power |
Weight |
|
| DN50-2104 |
997mm wide
570mm high
70mm deep |
21 |
4 |
179W max
89W nom |
12.6Kg |
 |
| DN50-3204 |
1485mm wide
570mm high
70mm deep |
32 |
4 |
268W max
134W nom |
17.4Kg |
|
| DN50-2106 |
997mm wide
830mm high
70mm deep |
21 |
6 |
268W max
134W nom |
17.4Kg |
 |
| DN50-3206 |
1485mm wide
830mm high
70mm deep |
32 |
6 |
403W max
201W nom |
24.6Kg |
 |
| DN50-2108 |
997mm wide
1090mm high
70mm deep |
21 |
8 |
358W max
179W nom |
22.2Kg |
 |
| DN50-3208 |
1485mm wide
1090mm high
70mm deep |
32 |
8 |
537W max
268W nom |
31.8Kg |
|
An almost unlimited combination of other configurations are possible, contact us for more information. If you require imperial measurements please contact us.
| 75mm (3") High Characters - 1 x 5mm LED per pixel - Popular Sizes |
| Model |
Case |
Chars. to View |
Lines |
Power |
Weight |
|
| DN75-1604 |
1115mm wide
690mm high
70mm deep |
16 |
4 |
134W max
67W nom |
11.4Kg |
|
| DN75-2104 |
1481mm wide
690mm high
70mm deep |
21 |
4 |
179W max
89W nom |
14.2Kg |
|
| DN75-3204 |
2213mm wide
690mm high
70mm deep |
32 |
4 |
268W max
134W nom |
19.8Kg |
|
| DN75-1608 |
1115mm wide
1330mm high
70mm deep |
16 |
8 |
268W max
134W nom |
19.8Kg |
|
| DN75-2108 |
1481mm wide
1330mm high
70mm deep |
21 |
8 |
358W max
179W nom |
25.4Kg |
|
| DN75-3208 |
2213mm wide
1330mm high
70mm deep |
32 |
8 |
537W max
268W nom |
36.6Kg |
|
An almost unlimited combination of other configurations are possible, contact us for more information. If you require imperial measurements please contact us.
| 100mm (4") High Characters - 1 x 5mm LED per pixel - Popular Sizes |
| Model |
Case |
Chars. to View |
Lines |
Power |
Weight |
|
| DN100-2104 |
2055mm wide
920mm high
110mm deep |
21 |
4 |
179W max
89W nom |
15.8Kg |
|
| DN100-3204 |
3030mm wide
920mm high
110mm deep |
32 |
4 |
268W max
134W nom |
22.2Kg |
|
| DN100-2106 |
2055mm wide
1320mm high
110mm deep |
21 |
6 |
268W max
134W nom |
22.2Kg |
|
| DN100-3206 |
3030mm wide
1320mm high
110mm deep |
32 |
6 |
403W max
201W nom |
31.8Kg |
|
An almost unlimited combination of other configurations are possible, contact us for more information. If you require imperial measurements please contact us.
| 150mm (6") High Characters - 3 x 5mm LED per pixel - Popular Sizes |
| Model |
Case |
Chars. to View |
Lines |
Power |
Weight |
|
| DN150-2104 |
3041mm wide
1160mm high
110mm deep |
21 |
4 |
179W max
89W nom |
22.2Kg |
|
| DN150-3204 |
4513mm wide
1160mm high
110mm deep |
32 |
4 |
268W max
134W nom |
31.8Kg |
|
| DN150-2106 |
3041mm wide
1680mm high
110mm deep |
21 |
6 |
268W max
134W nom |
31.8Kg |
|
| DN150-3206 |
4513mm wide
1680mm high
110mm deep |
32 |
6 |
403W max
201W nom |
46.2Kg |
|
An almost unlimited combination of other configurations are possible, contact us for more information. If you require imperial measurements please contact us.
If you need a larger character then take a look at Dynamic's range of DynaVision full graphic screens. DynaVision sizes start at 250mm (10") and go up in steps of 250mm (10"), it has fantastic text capabilities including full support for ANY Windows font at any size that fits!!
